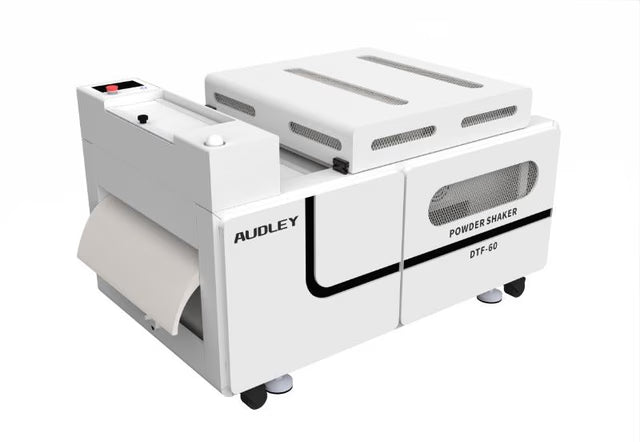

The Audley ADL07K12 is a compact DTF powder shaker and dryer designed to pair seamlessly with 24‑inch (600 mm) Audley DTF printers, such as 2‑head 60 cm systems. It supports PET transfer film up to 600 mm wide and running speeds up to 27 m/min, providing consistent powder application and curing for professional DTF production. Built with efficiency and safety in mind, it includes automatic powder feeding, a built‑in multi‑stage air purifier and an advanced PLC control system for simple, stable operation.

A six‑lamp heating tunnel (6 × 300 W lamp tubes) delivers controllable drying with recommended curing temperatures around 90–120 °C and a platform temperature near 75 °C, ensuring even powder melt without scorching the film. The mesh‑belt conveyor with integrated take‑up unit keeps film tracking stable as it moves through powdering and curing, reducing manual handling and improving repeatability on long runs.

The ADL07K12’s compact footprint—around 161 × 94 × 95 cm—means it fits through standard doorways and into tight production spaces while still providing an all‑in‑one powder, cure and take‑up solution for 60 cm DTF lines. Operating at about 2900 W on AC 220 V, 50–60 Hz power, and designed for rooms in the 18–30 °C and 40–60% relative humidity range, it integrates easily into typical shop environments without special infrastructure.

For control integration, the unit’s PLC‑based interface provides straightforward access to speed, temperature and process adjustments, and is intended to sit alongside a Windows PC that already meets your DTF printer’s requirements (for example, an Intel Core i7‑9700K‑class CPU, 8 GB RAM, 128 GB SSD + 1 TB HDD and gigabit Ethernet for the RIP and printer). The shaker ships in a crate approximately 170 × 109 × 111 cm with a machine weight around 242 kg including the built‑in purifier, and includes a one‑year warranty plus lifetime support.
