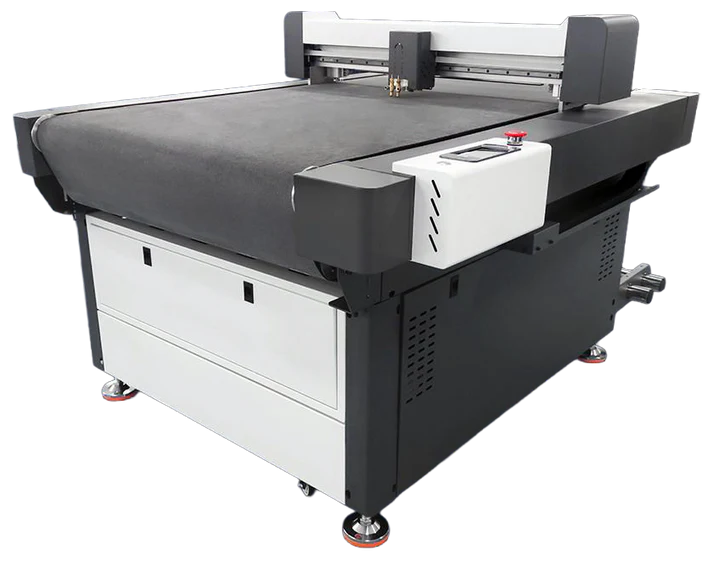

The Audley 7090U‑B is a professional‑grade flatbed plotter cutter designed to match the speed and precision of modern UV and UV‑DTF printing workflows. Built to integrate seamlessly with flatbed UV printers like the Audley 9060 and 60 cm UV‑DTF systems such as the 8030 and 8073, it delivers accurate contour cutting, kiss‑cutting and full‑cutting for labels, patches, decals and industrial components. Its dual‑head cutting system, industrial linear guides and servo‑driven motion make it a powerful finishing companion for high‑output shops.

With a cutting area of 700 × 900 mm and scroll/loop‑feed capability, the 7090U‑B handles both sheet and roll‑fed work efficiently. Cutting speeds from 1 to 800 mm/s and cutting thickness up to about 1.2 mm allow it to process a wide range of media including crystal labels, hot‑stamping film, PET, TPU, PVC, vinyl, stickers, films and flexible board materials. Multiple cutting modes support semi‑cut, full cut, dry adhesive, magnetic sheet and optional vibration tooling for plate materials, giving you flexibility across product types.

A built‑in CCD camera enables smart optical positioning with matrix mark detection and compensation, allowing the system to automatically locate registration marks and adjust for print deviation before cutting. This blind‑cut plus edge‑finding workflow is ideal for UV‑DTF transfers, printed labels and complex shapes where tight alignment is required. Mechanical resolution down to 0.025 mm and software resolution down to 0.01 mm support high‑accuracy jobs even under continuous operation, while a heavy‑duty steel chassis, rolling felt and vacuum adsorption table help minimize vibration and keep media flat.

For connectivity and control, the 7090U‑B supports USB, U‑disk offline mode, Ethernet (with optional Wi‑Fi) and optional barcode scanning for automated job recall. It uses an HP‑GL‑compatible command system and a touchscreen control panel for real‑time job monitoring, preview and calibration. The cutter includes 256 MB of onboard memory and runs on AC 110/220 V ±10%, 50/60 Hz power at less than 2800 W, with machine dimensions around 1525 × 1180 × 1050 mm and a shipping size of about 1700 × 1270 × 1210 mm. Net weight is approximately 320 kg with a shipping weight near 340 kg, making it a robust, 24/7‑ready finishing solution for UV and UV‑DTF production lines.
